ODM Fresh Milk Case

ODM Fresh Milk Case

Conditions for plasma-coupled temperature fields:

  •  A 4KV electric field strength to ground is applied within the effective area of the cabinet
  •   The effective area of the cabinet  meet the temperature range of (-3.5, -2.5)℃

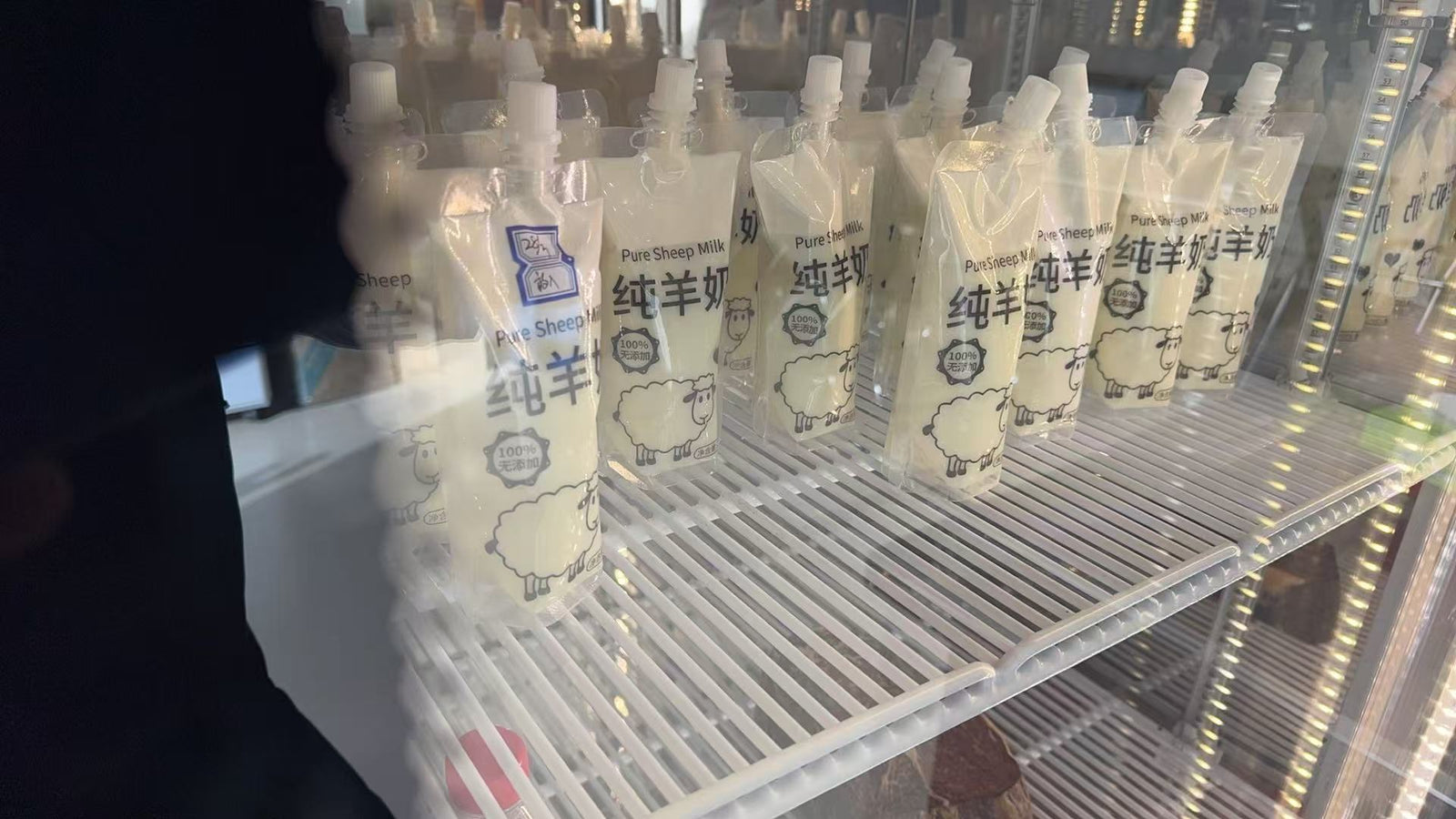

The phenomenon of packaged sheepmilk in the cabinet:

  • In environments ranging from -3.5°C to -2.5°C, the appearance of  fresh sheepmilk will not show any visual abnormalities such as freezing over time.
  • In environments ranging from -3.5°C to -2.5°C, from a personal perspective, the taste improves over time.

Real-time recording and test data:

Freshly squeezed sheep milk on March 27, 2026, packaged and cooled to 3°C.



 On March 28, 2026, sheep milk was placed in this environment, and samples were taken for 1st testing:

  • Physicochemical indicators: Protein: 5.02 g/100g, Fat: 4.52 g/100g, Acidity: 18.16°T;
  • Microbiological indicators: The result of the original solution for coliform bacteria was 46 CFU/mL, and the result of the original solution for total bacterial count was 7000 CFU/mL.



 On March 31, 2026, sheep milk  samples were taken for 2nd testing:

  • Physicochemical indicators: Protein: 5.00 g/100 g, Fat: 4.55 g/100 g, Acidity: 17.93°T.
  • Microbiological indicators: The result for the stock solution of coliform bacteria was <1 CFU/mL, not detected. The result for the stock solution of total bacterial count was 4600 CFU/mL.



 On April 5, 2026, sheep milk  samples were taken for 3rd testing:

  • Physicochemical indicators: Protein: 5.01g/100g, Fat: 4.58g/100g, Acidity: 18.23°T.
  • Microbiological indicators: The result of the stock solution for detecting coliform bacteria was <1 CFU/mL, and the result of the stock solution for detecting total bacterial count was 2500 CFU/mL.



 On April 13, 2026, sheep milk  samples were taken for 4th testing:

  • Physicochemical indicators: Protein: 5.06g/100g, Fat: 4.60g/100g, Acidity: 18.71°T.
  • Microbiological indicators: The result of the stock solution for detecting coliform bacteria was <1 CFU/mL, and the result of the stock solution for detecting total bacterial count was 2100 CFU/mL.





On April 20, 2026, sheep milk  samples were taken for 5th testing:

  • Physicochemical indicators: Protein: 5.04g/100g, Fat: 4.56g/100g, Acidity: 18.08°T.
  • Microbiological indicators: The result of the stock solution for detecting coliform bacteria was =1 CFU/mL, and the result of the stock solution for detecting total bacterial count was 5300 CFU/mL.





On April 29, 2026, sheep milk  samples were taken for 6th testing:

  • Physicochemical indicators: Protein: 5.02g/100g, Fat: 4.55g/100g, Acidity: 18.85°T.
  • Microbiological indicators: The result of the stock solution for detecting coliform bacteria was =1 CFU/mL, and the result of the stock solution for detecting total bacterial count was 1900000 CFU/mL.



Evaluation of existing test data:

  • Physicochemical indicators: remained essentially unchanged;
  • Microbiological indicators: coliform bacteria in the milk decreased significantly (standard value used: <5 CFU/mL).The total bacterial count in the milk continuously decreased during the first 17 days; after the 18th day, it continuously increased, reaching 5,300 CFU/mL by the 23rd day and 1,900,000 CFU/mL by the 32nd day.
  • Freshly milked milk (free from artificial interventions such as pasteurization) has an effective shelf life of 28 days—representing a preservation extension of more than tenfold compared to natural storage at 25°C, which lasts only two days.

Plasma-coupled temperature field has a sterilization effect and also extends shelf life.

Equipment Models:

  • BMJ500S
  • BMJ800
  • BMJ1000
